MED CrossWASD Mk-II (+WASDⅡ)

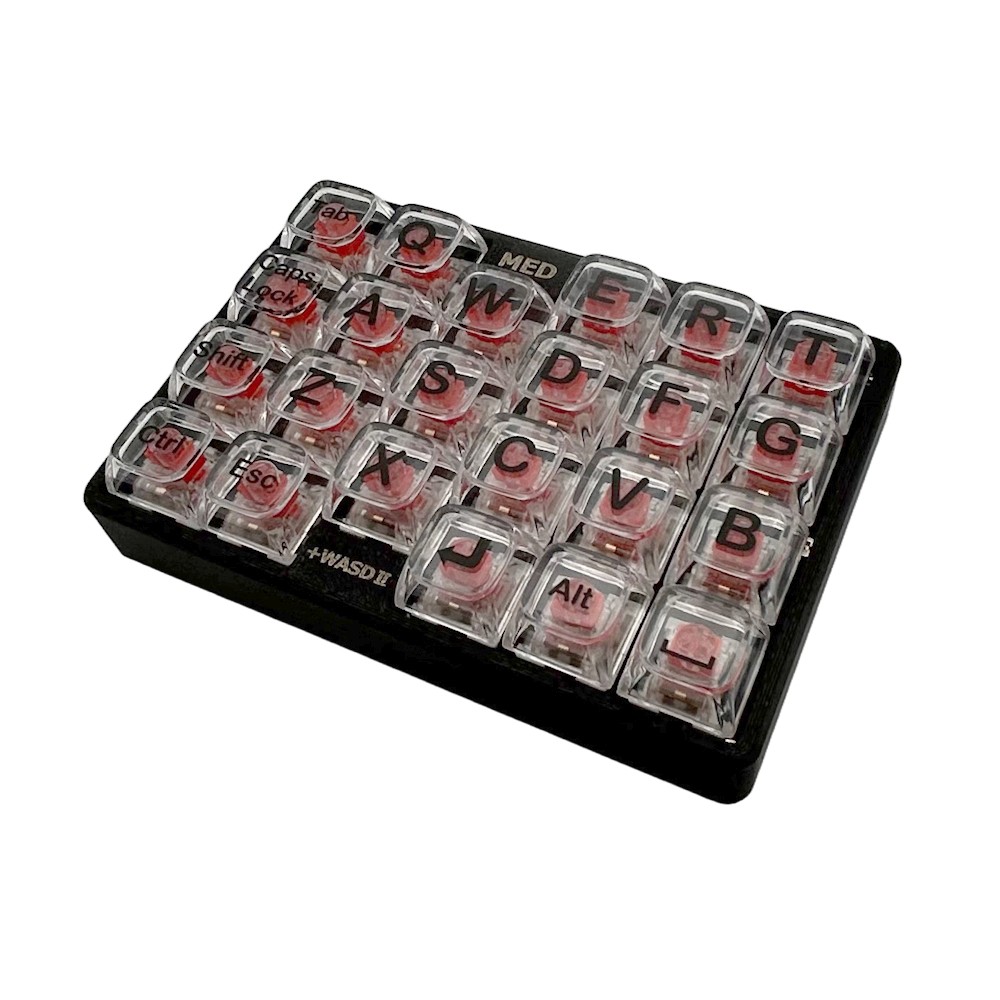

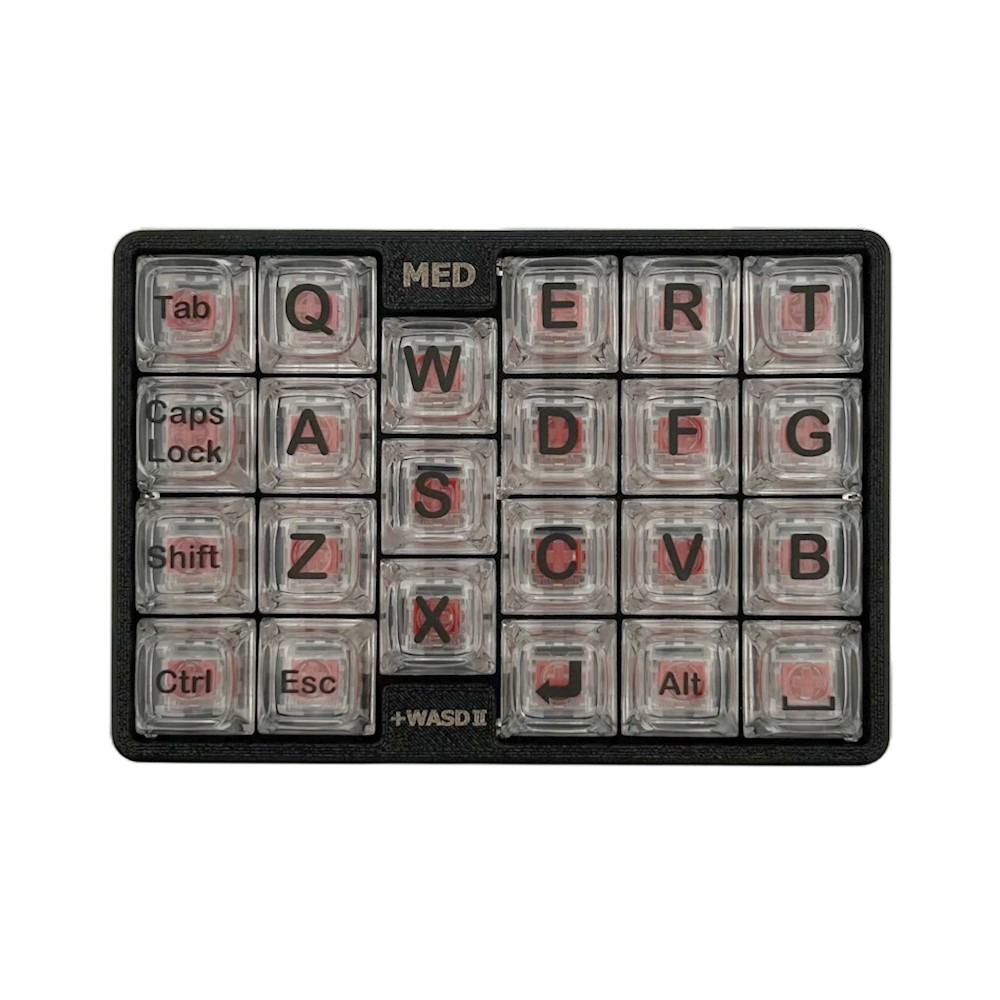

A keyboard with WASD keys arranged in a cross shape.
(Gaming keyboard for Left hand)

[Features]

  • This product is a left-handed keyboard with WASD keys arranged in a cross pattern. The Esc key, used for menus and canceling selections in PC games, and the Return (Enter) key, used for confirming selections, are positioned at the bottom.
  • The key switches utilize a removable socket plug design, allowing replacement with other MX profile key switches.
  • The keycaps feature an XDA design with a gently curved concave shape, providing an easy-to-press profile.

[Usage Instructions]

  • This product is recognized by the PC as a USB keyboard named ‘MED + WASD II’.
  • As a standard USB-HID-Keyboard, this product functions with standard drivers. Therefore, no separate dedicated driver installation is required. When connecting this product to a PC for the first time, it may take some time for the PC to recognize it.
  • To replace the key switches, use a switch extraction tool (sold separately).

[Main specifications]

  • Standard: USB-HID-Keyboard (wired connection only)
  • Supported OS: Windows OS
  • Keyswitches used: Outemu Dustproof Red
  • Connector type: USB Type-C female
  • Body size: 122 mm * 84 mm * 26 mm
  • Included USB cable connector type: Type-A male to USB Type-C male
  • Length of the included USB cable: 1.5m

[Development Background]

The developer of this product found that when using the WASD keys as a directional pad, the horizontal offset between the W and S keys on a standard keyboard layout made input operations difficult.

Additionally, for the developer with smaller hands, positioning the ASD keys as the operational reference point made the W key feel distant and difficult to press, despite its high usage frequency.

To resolve these issues, this product arranges the WASD keys in a cross pattern. This eliminates the horizontal offset between the W and S keys, brings the W key closer to the operational reference position, and makes the W key easier to press. Consequently, this product improves operability when using the WASD keys as directional keys.
